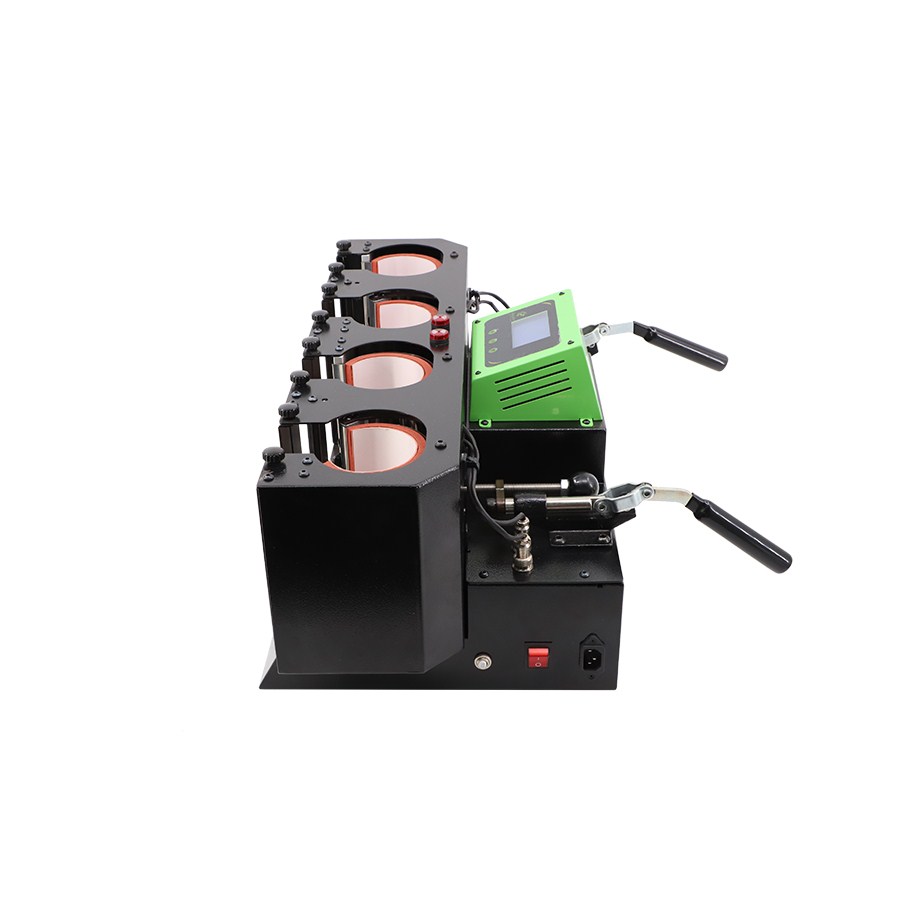

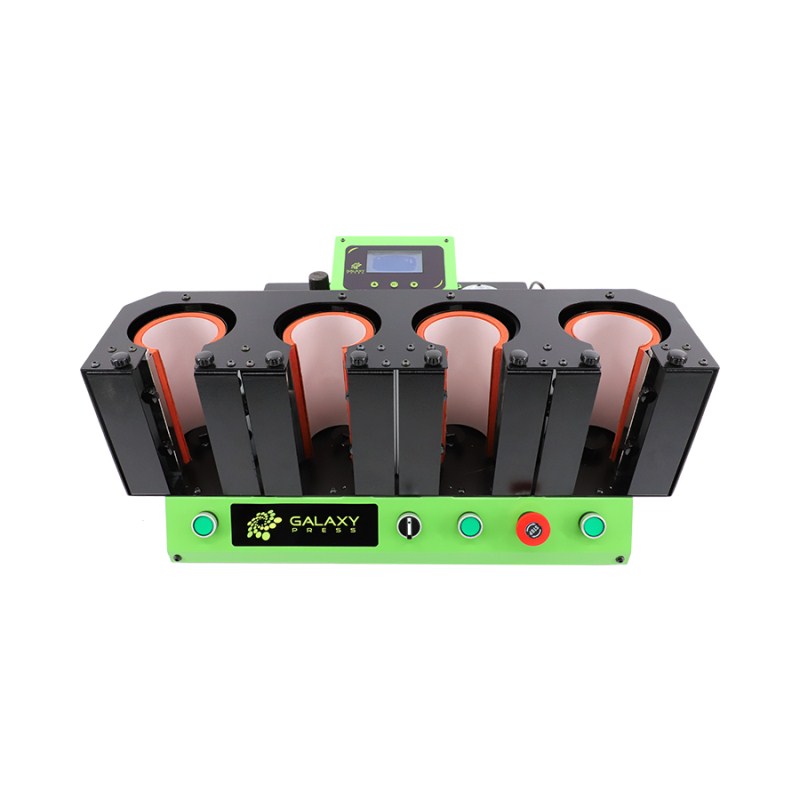

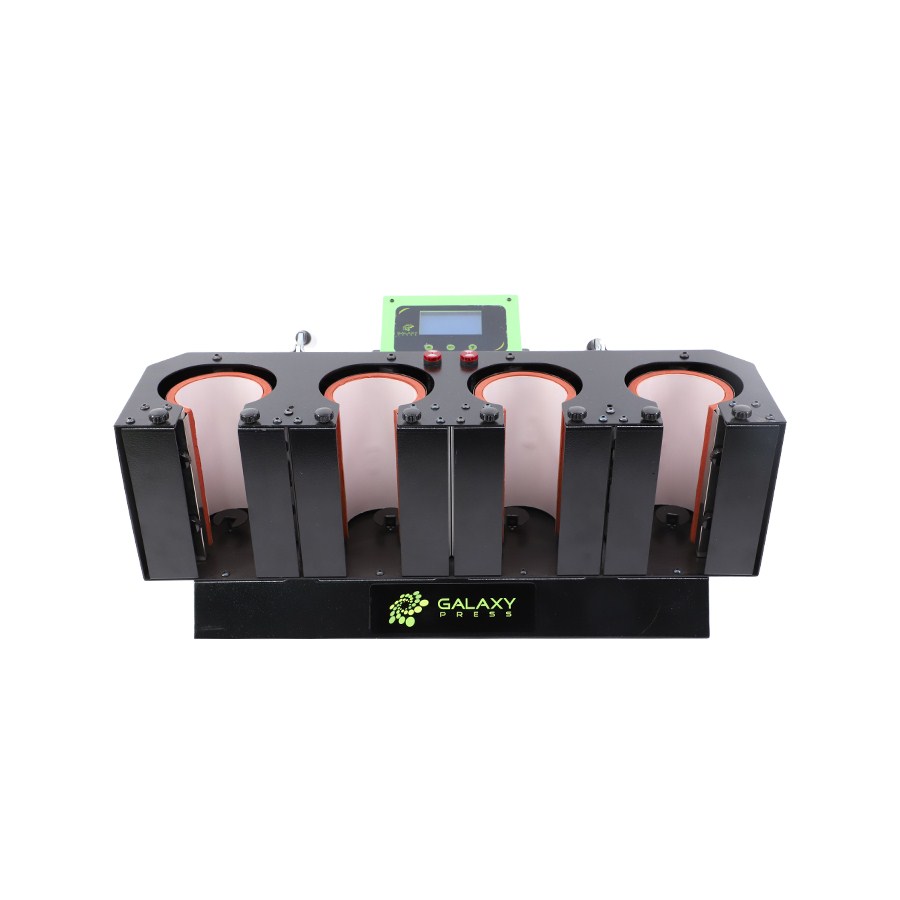

Galaxy Manual Mug4 GS-207M is the manual type of 4 stations mug press, the structure and function are the same as GS-207, just do not need any extra air compressor and it is manual so the production efficiency would be lower than GS-207.
So this machine would be good for the customers who would need to print few hundreds of Aluminum water bottles a day and have some limit on budgets for getting new equipment.

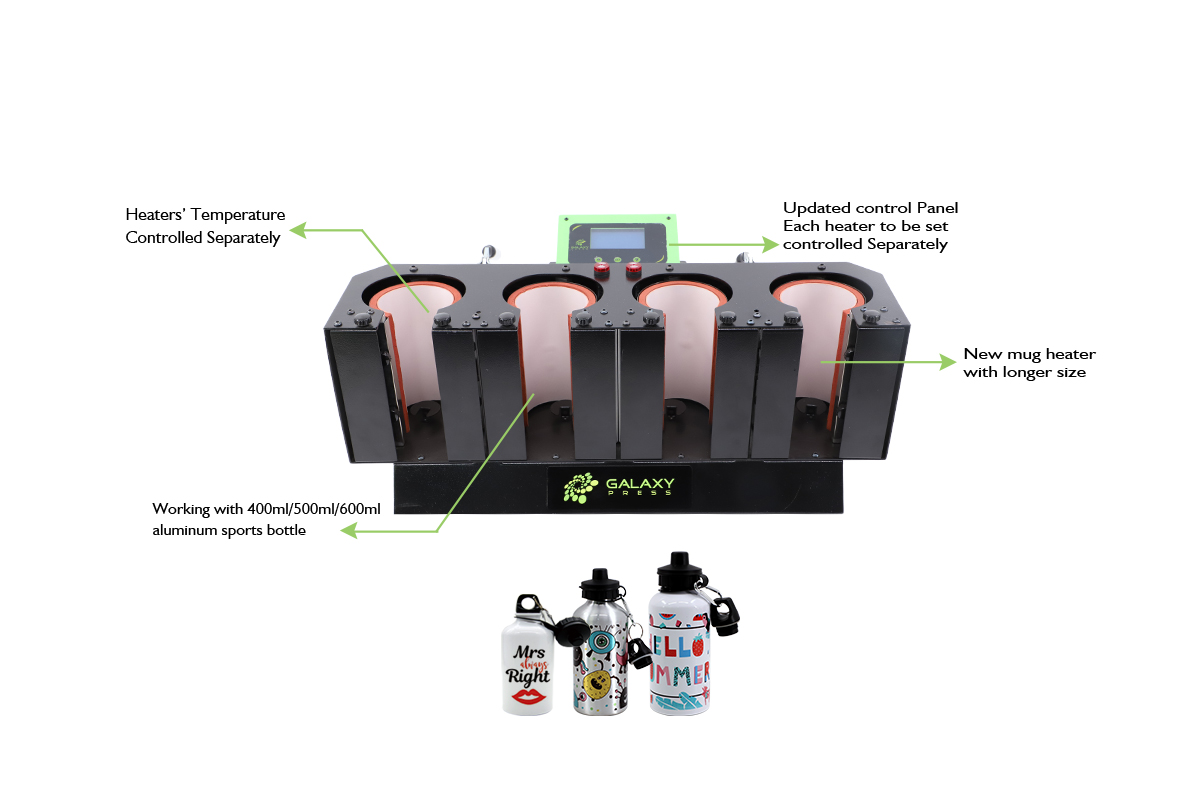

Features

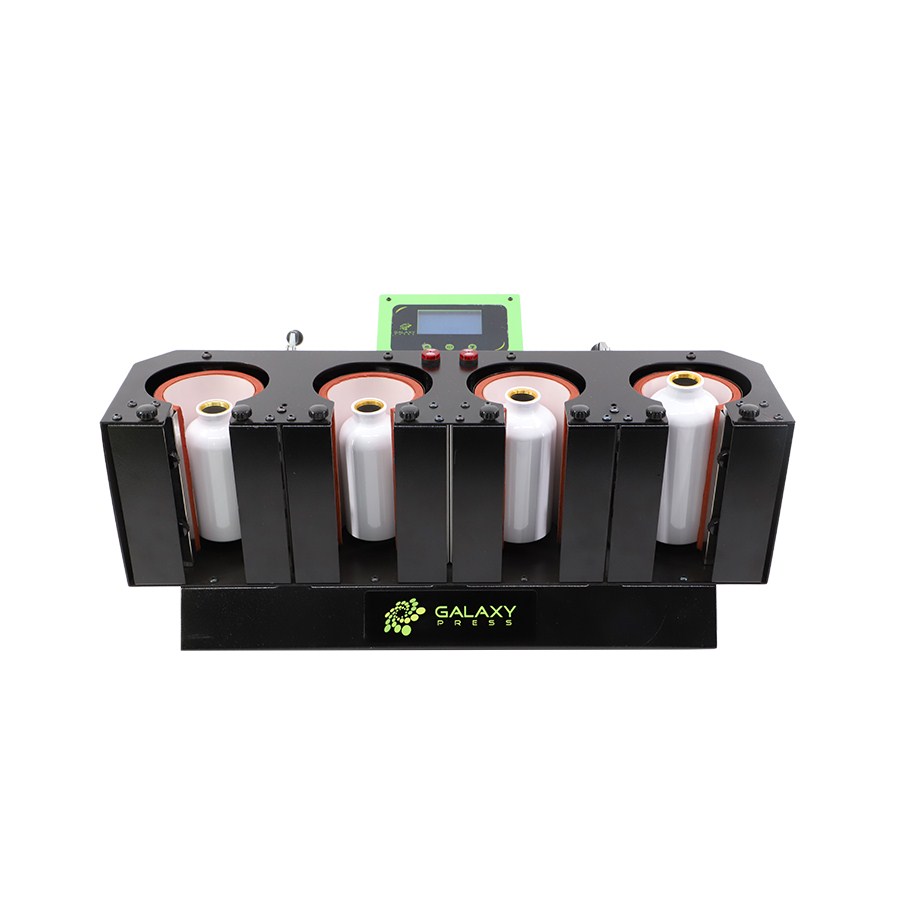

1. GS-207M is designed specially for 400ml/500ml/600mlaluminum water bottle printing.
2. Heaters temperature controlled separately.
3. Updated control panel each heater to be set controlled separately.
4. New mug heater with longer size.
Model: | GS-207M |
Heater Size | W195mm*H170mm |
Power(120volt) | 4*300W/11.5Amps |
Power(240volt) | 4*300W/6Amps |
Temperature Range: | Max.220℃/430℉ |
Time Range: | 0~999S |
Machine Size(While Open): | 65.2*33.9*28.5cm |
Packing Size: | 73*42*37cm |
Packing Weight: | 26.5kg |
Productivity | 120-140pc/hour |
Maximum Paper Printing Size: | 400ml sports bottle: 175*99mm(L*W) |
500ml sports bottle: 175*114mm(L*W) | |
600ml sports bottle: 175*134mm(L*W) | |
Suggest Temp&Time Setting: | 150℃/180℃ 30secs |
302℉/356℉ 30secs | |
Certificate: | CE, FCC |
Warranty: | 1 year for control board, 2 years on whole machine except heaters |
