Home >> Products >> Heat Press >> Cap & Logo Press >> Neptune Press GS-501

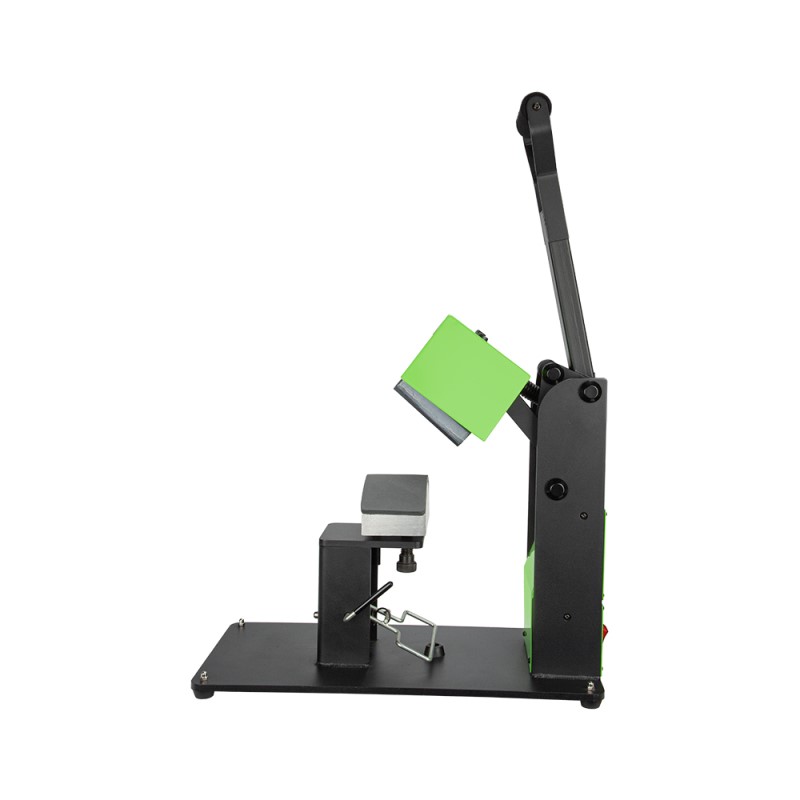

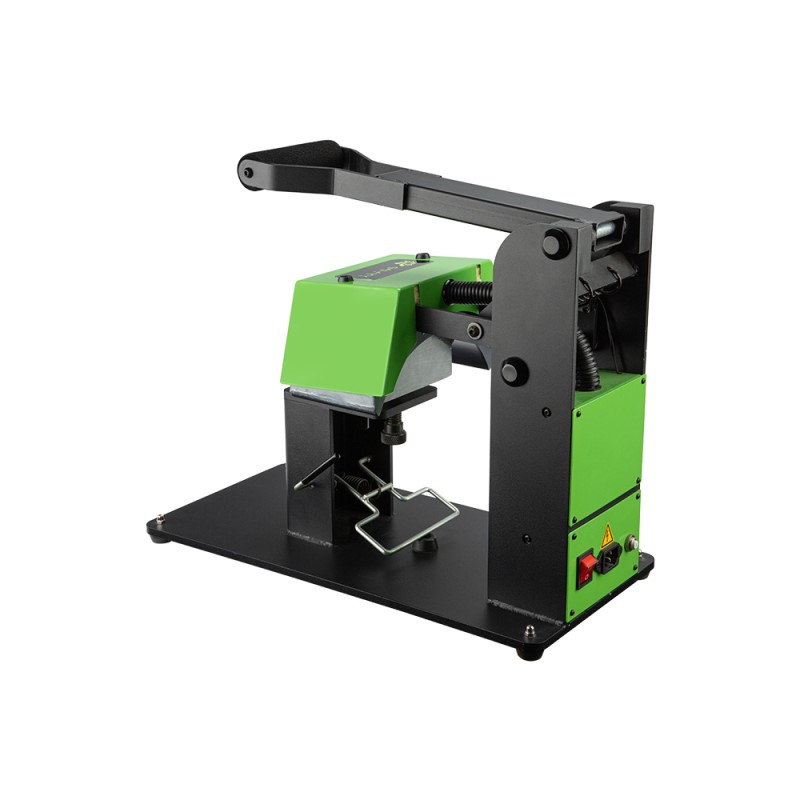

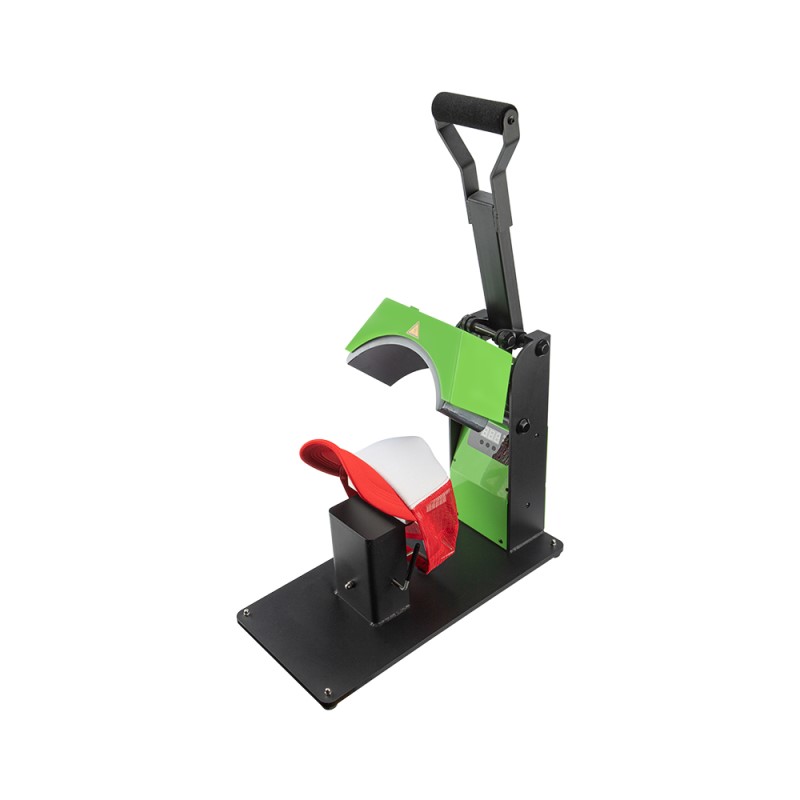

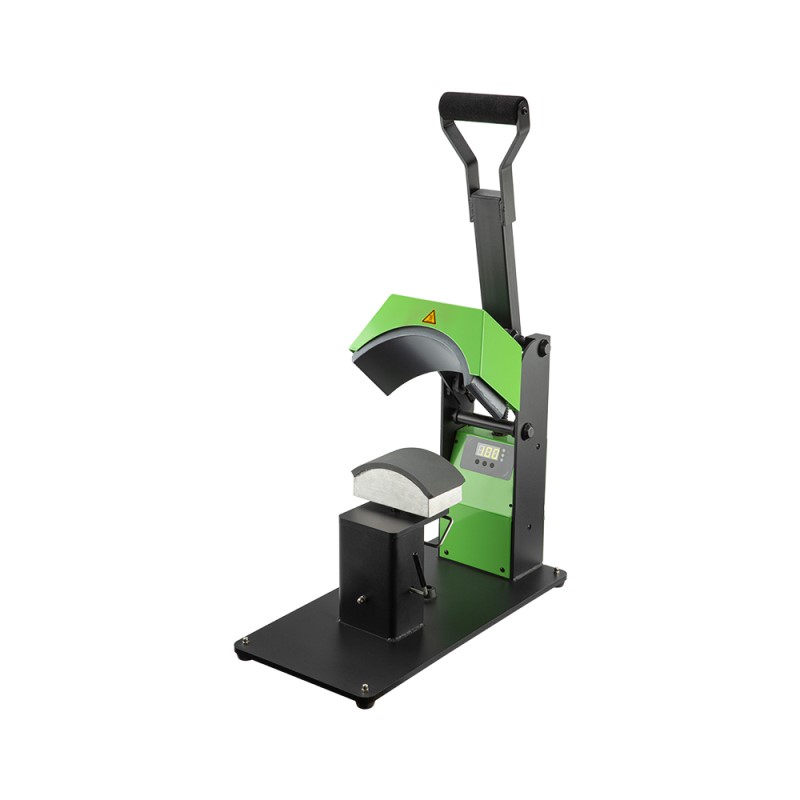

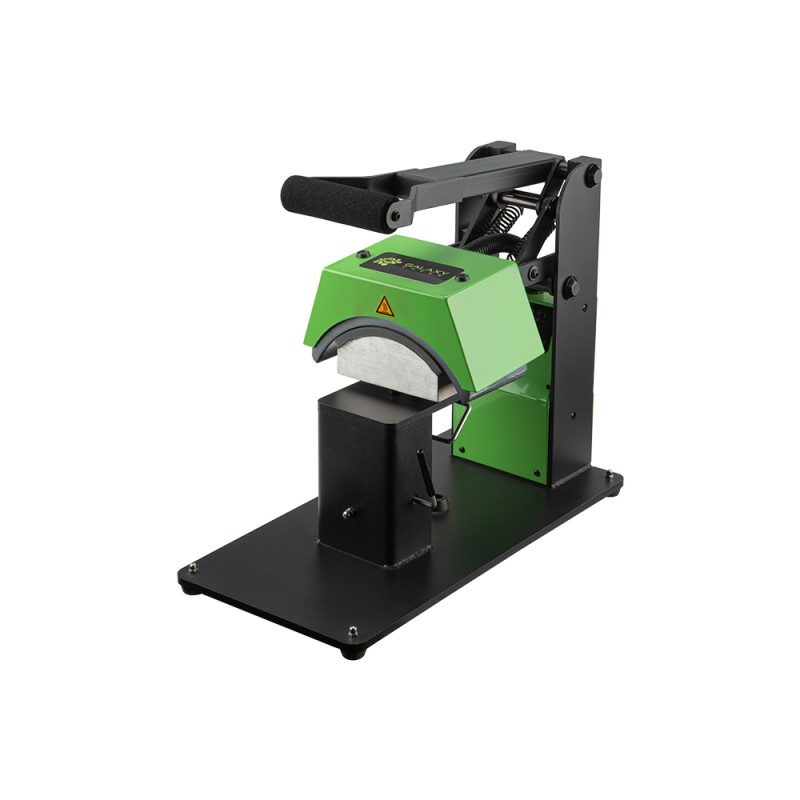

Neptune Press GS-501

1. Solid Welded Structure

2. Over The Center Pressure Distribution

3. Curved platens

4. lnterchangeable Platens


Make A Fashionable And Unique Cap.

Neptune Press GS-501 digital cap press is offered with one size heat platen and 5 different sizes lower platen.  All platens are perfectly molded to mirror a hat's curves and are designed to apply for heat transfers onto cap brims and bills. GS-501 is also useful for printing logos and back-neck labels onto flat garments. The portable and compact design makes this heat press perfect for use at home or retail shops.


Features

1.Solid Welded Structure:

State-of-art welding, which offers the machine with a strong and stable structure.

2. Over The Center Pressure Distribution:

The Pressure source is strategically placed over the center of the upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy duty distribution of pressure that is unmatched by other heat presses in the market today.

3. Curved platens:

All platens are perfectly molded to mirror the curves of a hat and are designed to apply heat transfers on to cap brims and bills.

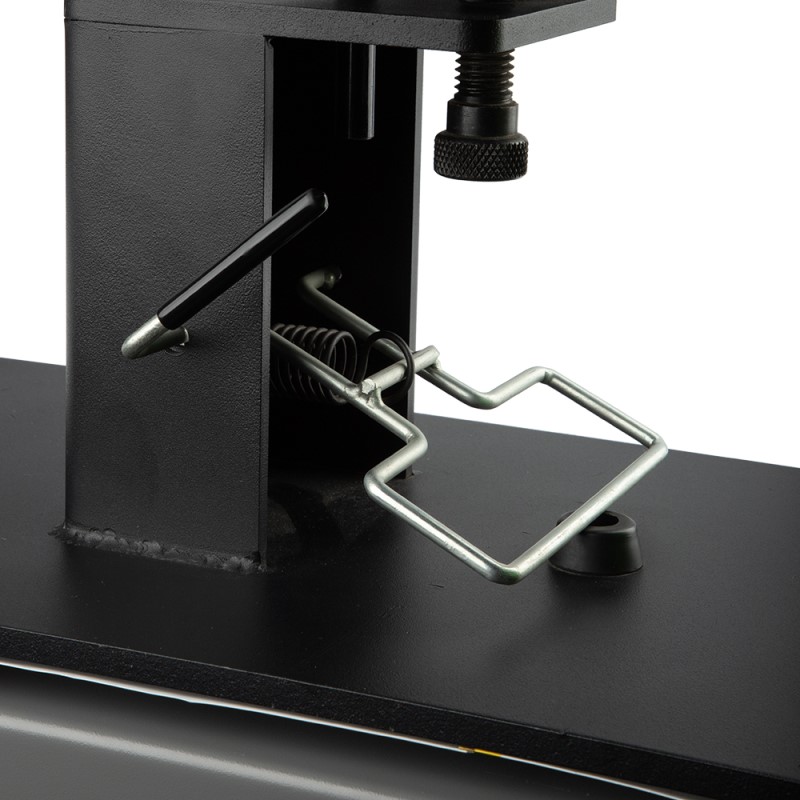

4. Interchangeable Platens:

GS-501 is offered with 5 different sizes lower platens, by which customers could decorate headwear of all shapes, styles and sizes.

ModelGS-501
Heater Size:
(Standard lower cap platen comes in the package:3.5"*6.5"150*89*60mm )
3.5"*6.5"150*89*60mm- Included
3"*5.75"150*77*60mm- optional
2.75"*6.5"148*76*61mm- optional
4"*6.5"150*101*60mm- optional
4"*8"170*101*65mm -  optional
Power(120volt)500W/4.5Amps
Power(240volt)500W/2.3Amps
Temperature RangeMax.221℃/430℉
Heating Up Time180℃/15minutes
Time Range0~999S
Customized ColorAvailable
Customized BrandAvailable
Machine Size(While Open)47*23*68.5cm
Packing Size56*31*46cm
Packing Weight18kg
CertificateFCC, CE
Warranty3 years on heat platen, 1 year on parts
