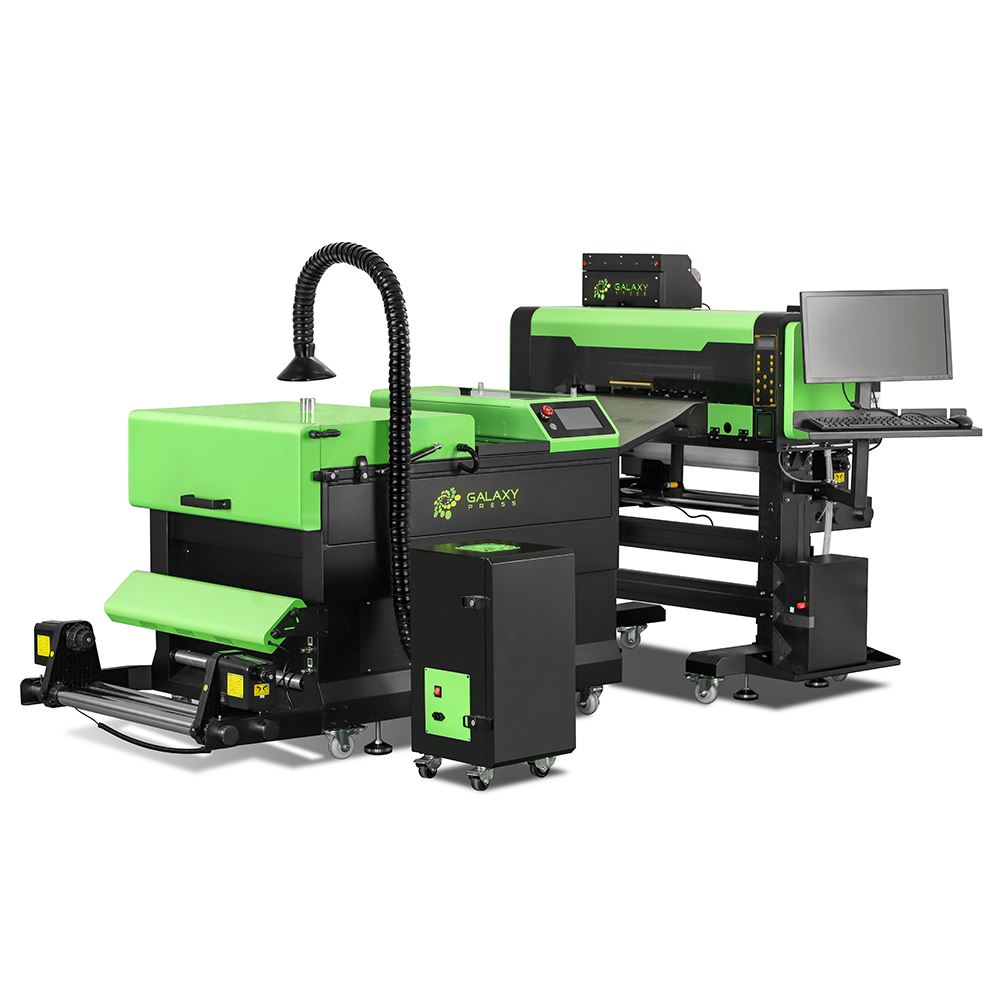

Galaxy A2 (45CM) DTF Printer Solution
A2 DTF Printer is an original developed for DTF use only ,offered with two Epson I3200 printer head and with the printing width as 45CM. The reason for us to develop an A2 printer with almost the same settings as 60cm is as below:
1. Bring benefit for designers:
Most of the designs for garment printing would be with the width more or less as 45CM, which could let designer do not need to worry how to mix different size of design to save the film
2. Save time for operation:
You would only need to cut the design one by one from the queue, then use heat press to print
3. Save the working space:
The whole system would be smaller than 60CM printer, it can manage to get into a door with the width as 36”
4. 60cm system would be the perfect solutions for customer who need to print few hundreds of garment daily:
original designed for DTF printing,so it would be more stable and last longer compared with A3 system, although the price would be such big.

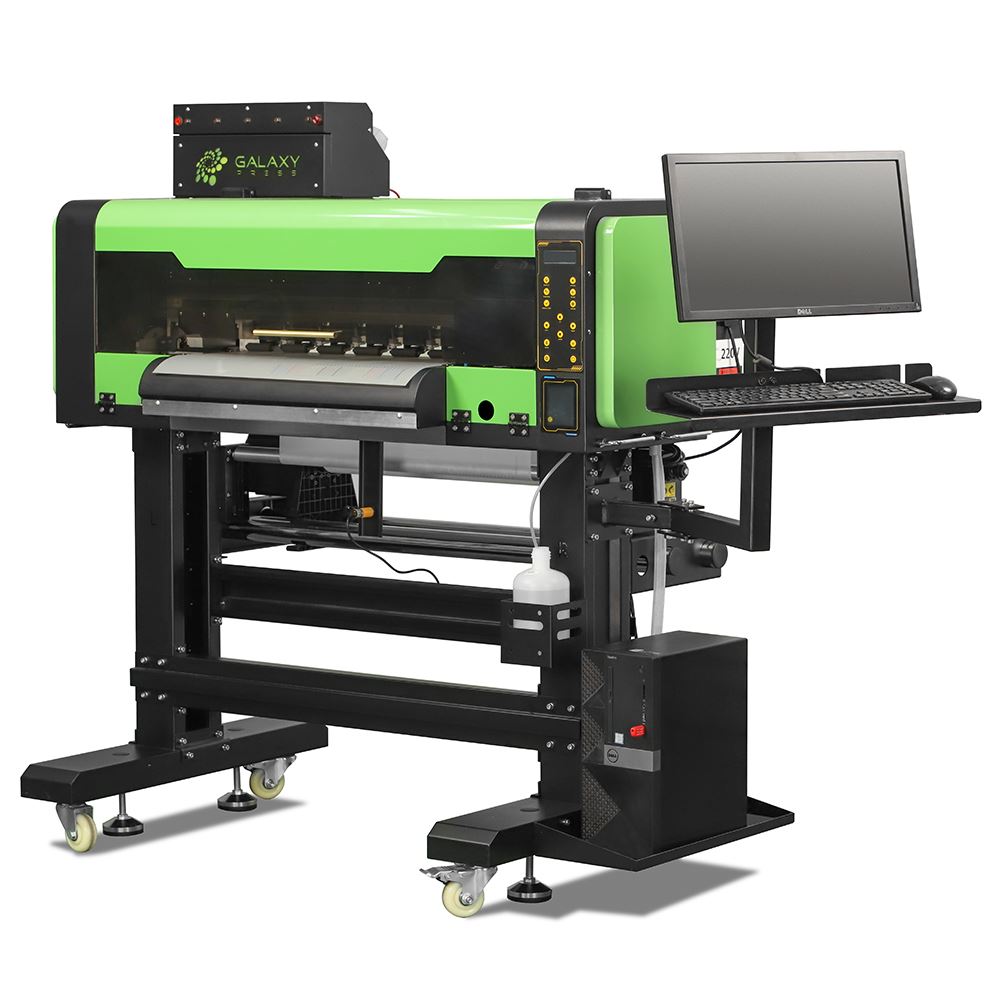

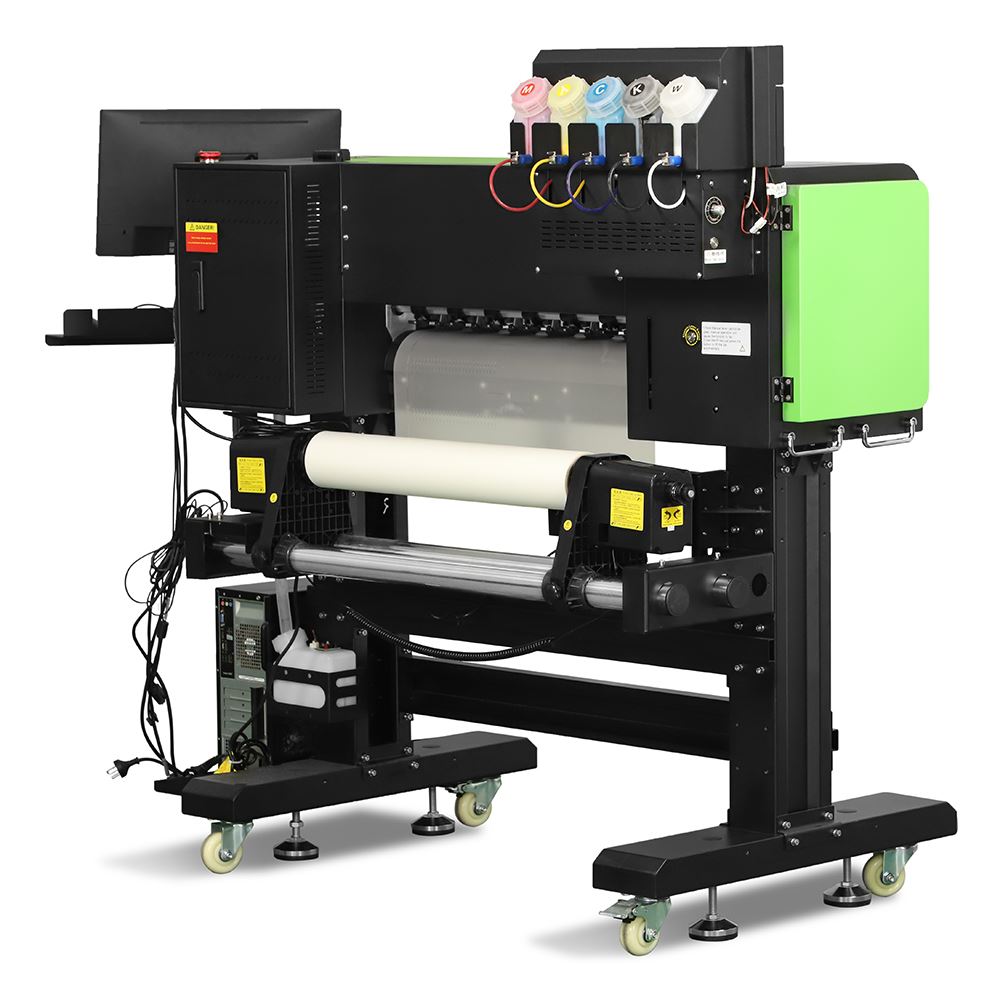

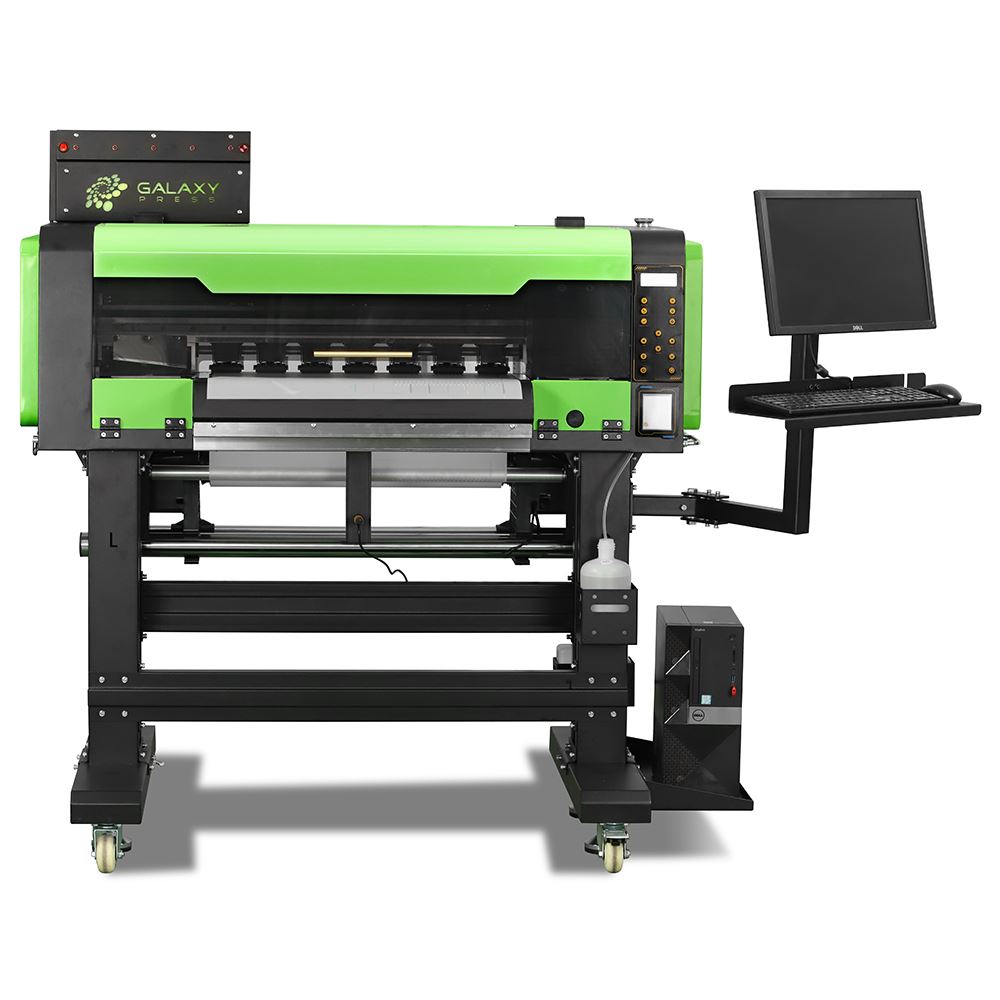

Galaxy DTF A2 (45CM) Printer
Features
1. Accurate resolution metal part with vacuum system
2. Dual 13200 head with Hanson Mainboard
3. White Ink Circulating System
4. Unique Heating System
5. Auto-cleaning system
6. Auto Alarming Ink Consumption System
 |  |  |
| Hanson Mainboard | Accurate Platen with Unique Heating System | Auto-Cleaning System |
 |  |  |
| Leadshine Motor | Film Reading Sensor | Auto Alarming Ink Consumption System |
 |  |  |
| Cleaning Liquid Self-feeding System | Emergency Konb | White Ink Circulating System |

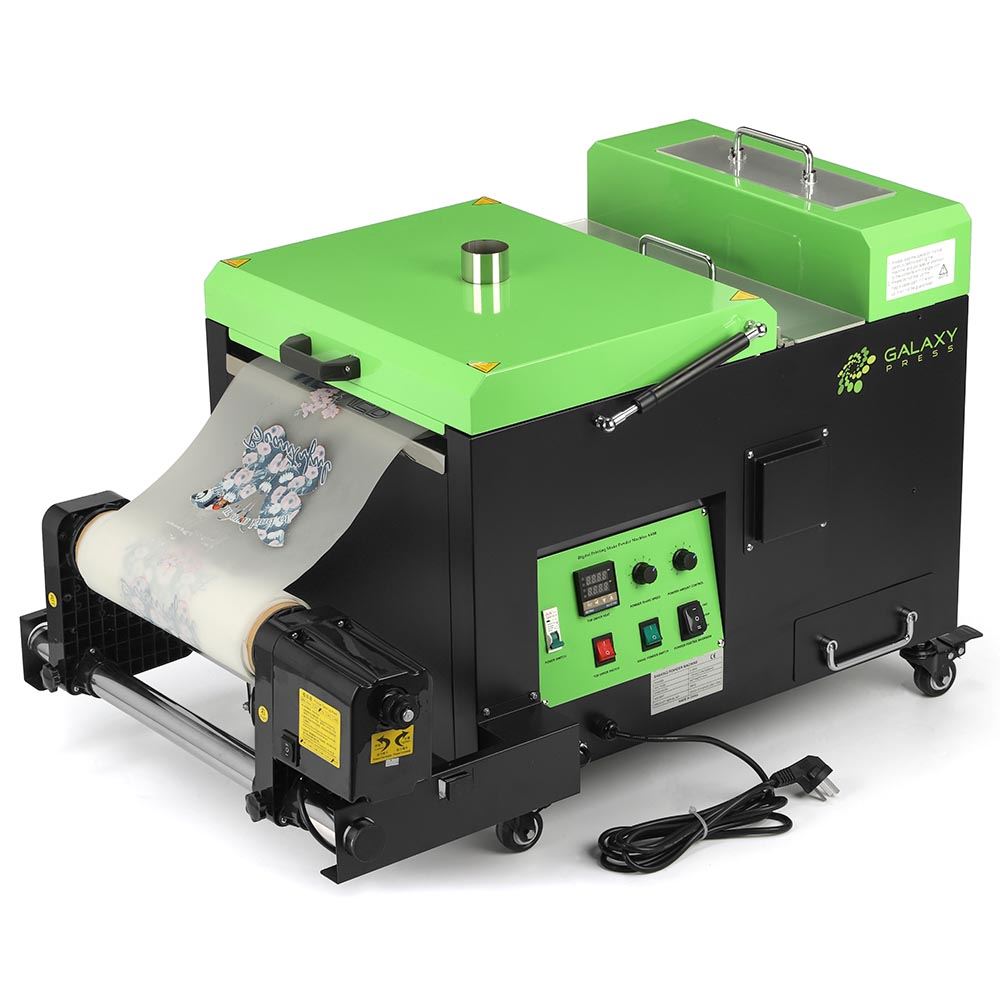

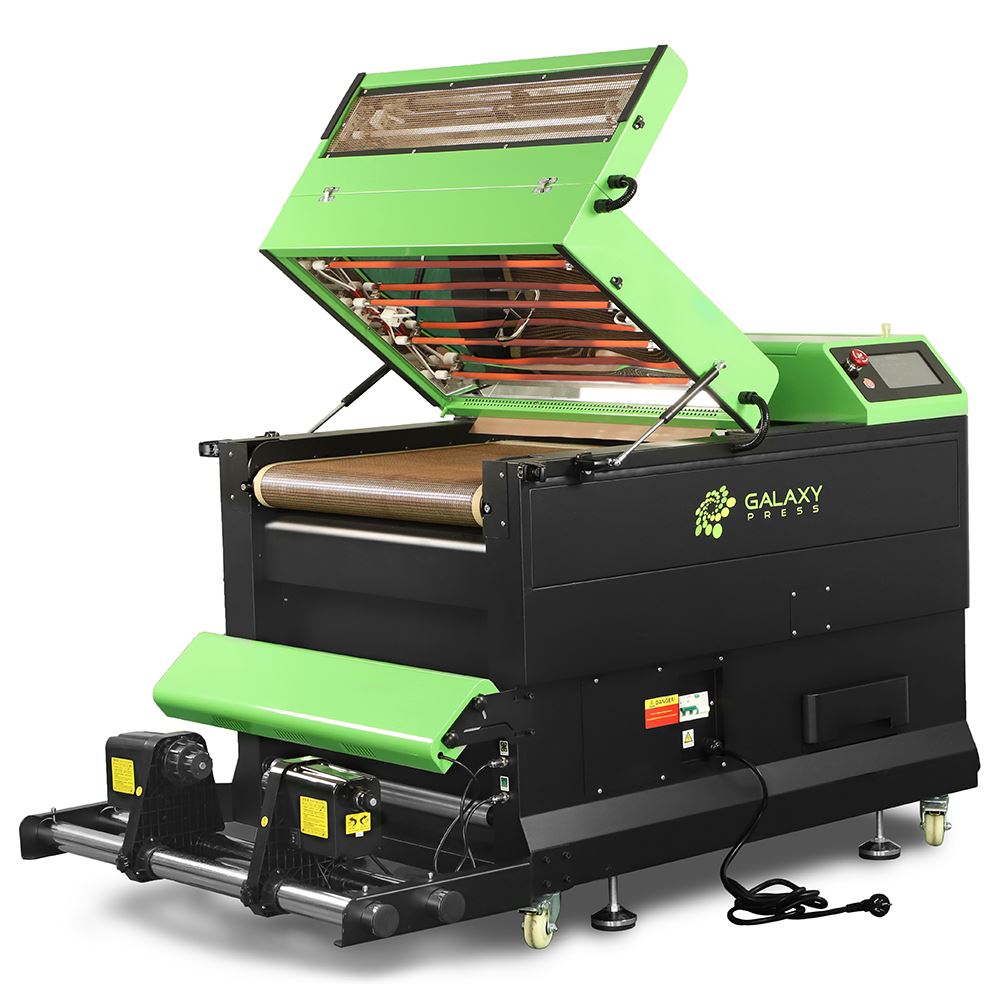

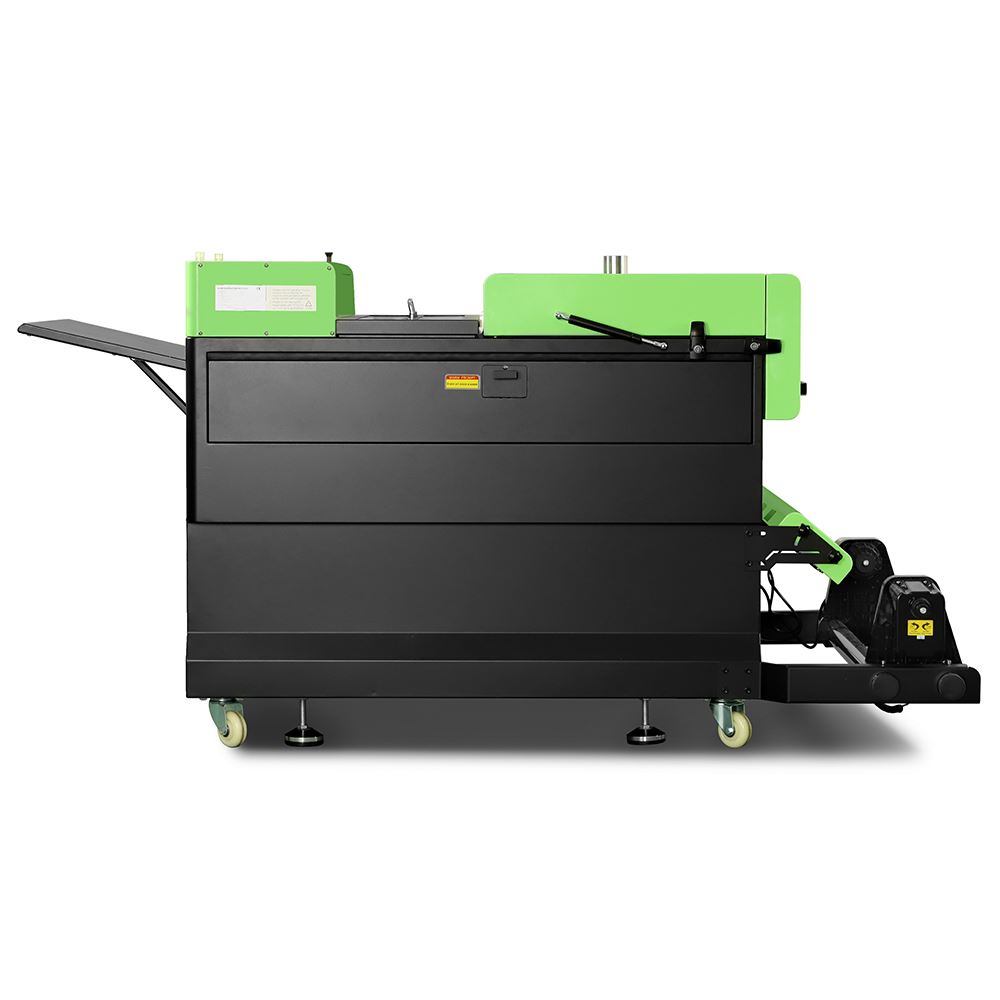

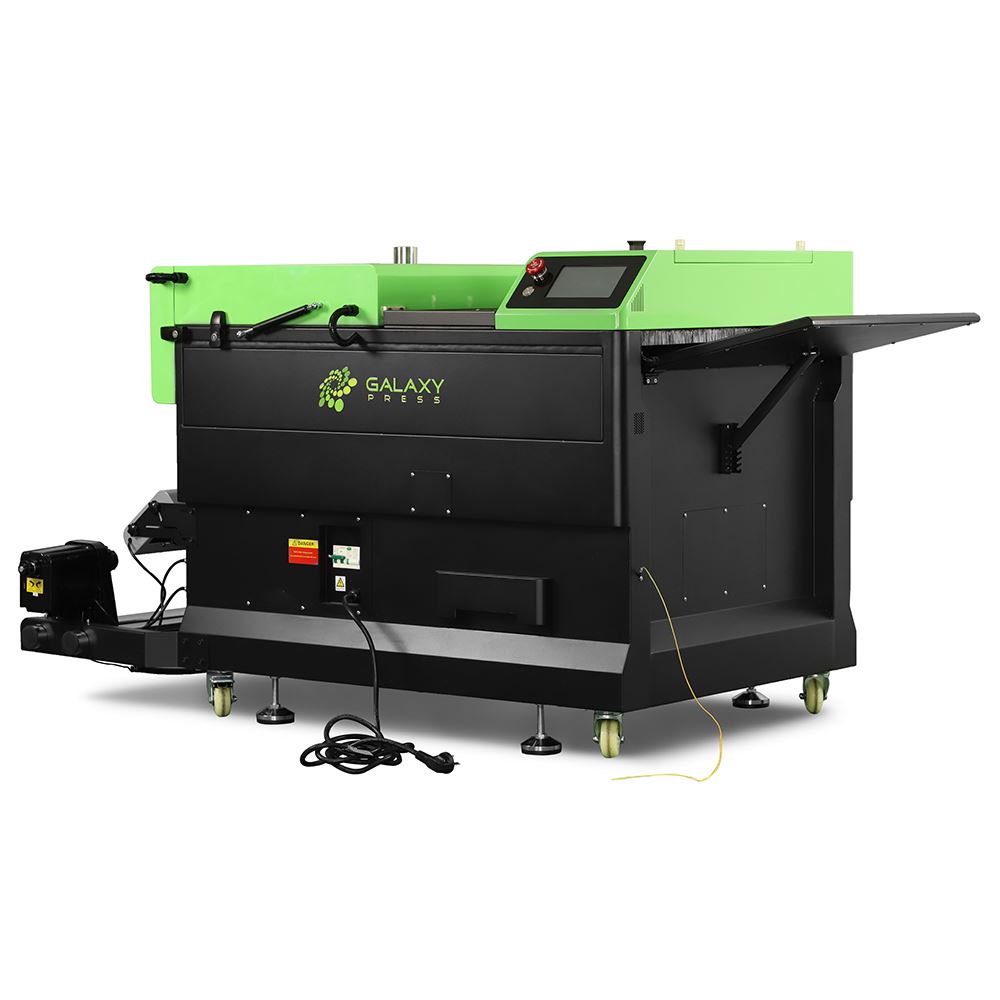

Galaxy A2 DTF Powder Shaker and Dryer 2in1
GGalaxy DTF A2 shaker is mean to work together with our GALALXY DTF A2 printer. This shaker is developed by the means of helping user more easier to operate ,keep the whole structure as easy and stable as it could be while make sure the cost is reasonable which could be competitive based on the solution we bring into the market through our dealers.
It is compact although you would see it is not ,but compared with the function it brings. So this A2 system would be an ideal choice for the customer who is struggle with the space but need a higher volume of production system
Features:
1. Powder shaking & film curing 2in1 machine
2. Powder apply speed & volume adjustable
3. All-around wheels for easy movement
4. Smart film roll-up system
| Galaxy DTF A2 Printer | |
| Model No.: | GS-DTF-A2 |
| Printer Head | Dual Epson I3200 |
| Max. Printing Width | 45cm(18”) |
| Color | CMYK+WWWW |
| Resolution | 1440/2160/2880dpi |
| Printing Speed | 4pass 7.5m²/H |
| 6Pass 5.5 ㎡/H | |
| 8Pass 4.5㎡/H | |
| Software | Compatible with Cadlink& Photoprint |
| PC | Win7、Win10 |
| Working Condition | Temperature: 15 - 30℃ |
| Humidity:35-65% | |
| Film Feeding | Self-feeding system |
| Power | 800W |
| Voltage | 50HZ/60HZ,220V 3.6A |
| Net Weight(kg) | 139kg |
| Gross Weight(kg) | 189kg |
| Size for Printer | L*W*H:1160mm*750mm*1416mm |
| Packing Size： | L*W*H:1200mm*1000mm*711mm |
| Galaxy A2 DTF Powder Shaker and Dryer 2in1 | |
| Model No.: | GS-S-45(18”) |
| Max. Curing Width | 60cm(24”) |
| Powder Recycling | Every 4.5 to 5 hours manually (keep printing) |
| Voltage | 220V Only (Need to have 220V Power for the country which is using 110V voltage |
| Power | 3.8KW/15A |
| Power consumption during working | 2KW-3.2KW |
| Net Weight(kg) | 150kg |
| Gross Weight(kg) | 200kg |
| Shaker Size | L:W: H:1620mmX762mmX992mm |
| Packing Size | L:W:H:1420mmX980mmX1113mm |
